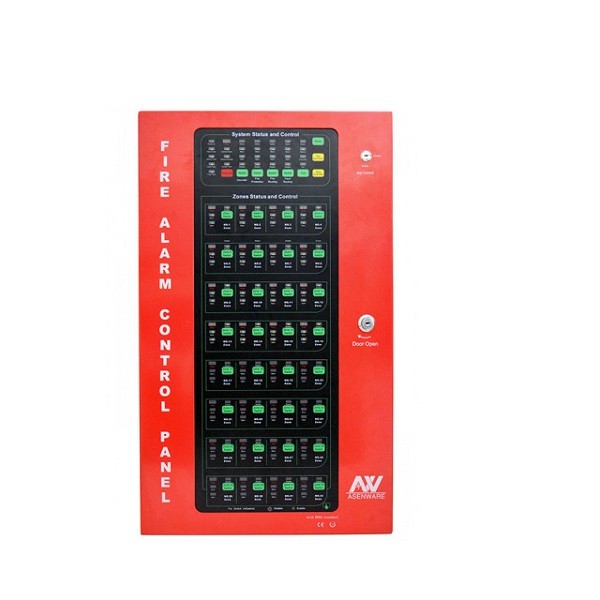

Asenware 16 Zone conventional fire panel AW-CFP2166-16

Sold By

Secureshop

(0 customer reviews)

Top Selling Products

Addressable strobe sounder base AW-D120

NGN49,245.00
ASENWARE CONVENTIONAL SMOKE Detector AW-CSD381

NGN11,550.00
ASENWARE CONV PANEL AW-CFP2166-2 2 ZONE PANEL

NGN158,550.00
ASENWARE CONV PANEL AW-CFP2166-4 4 ZONE PANEL

NGN188,510.00
15-30W water proof speaker AW-SP04

NGN61,250.00
20-30W water proof speaker AW-SP05

NGN87,500.00

Description Reviews

The AW-CFP2166 series 12-32 Zone conventional fire alarm panel is designed based on EN54 part 2＆4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.

Product Features

12-32 Zone Fire Alarm Control Panel Specification

It is modularized design, the panel can expend from 1 zone to 32 zones easily
It has 2 level control mode by a lock
It has 24VDC and 5VDC power supply output.
It has FIRE and FAULT signal output.
It has 2 general sounders output.
Each zone has 1 circuit detectors input.
Each zone can be disable by a button.
It has RESET button to reset the panel.
It has SILENCE button to stop BUZZER and SOUNDERS.
It has EVACUATE button to start a manual fire alarm immediately
It has battery low protection function, when battery voltage lower than 21VDC,battery will be cut off automatically until the mains power is on
1It has an optional GSM module for fire alarm by SMS
