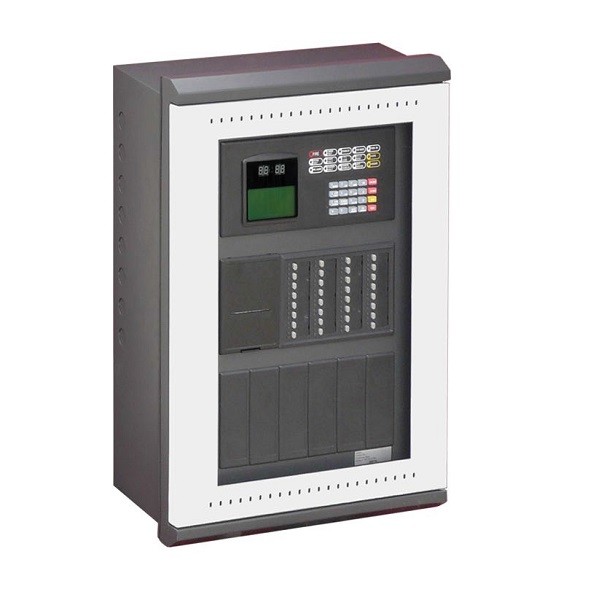

GST ADDRESSABLE 2 LOOP PANEL GST200N-2

Sold By

Secureshop

(0 customer reviews)

Top Selling Products

Addressable strobe sounder base AW-D120

NGN49,245.00
ASENWARE CONVENTIONAL SMOKE Detector AW-CSD381

NGN11,550.00
ASENWARE CONV PANEL AW-CFP2166-2 2 ZONE PANEL

NGN158,550.00
ASENWARE CONV PANEL AW-CFP2166-4 4 ZONE PANEL

NGN188,510.00
15-30W water proof speaker AW-SP04

NGN61,250.00
20-30W water proof speaker AW-SP05

NGN87,500.00

Description Reviews

GST200N Series Panel contains 1 loop version GST200N-1, 2 loops version GST 200N-2, and several other language variant models. 1 loop model can be extended to 2 loops by using an additional loop card (LC200).
    ☆  Maximum loop capacity of 477 intelligent devices （1 loop model loop capacity is 235 intelligent devices ）
    ☆  Wide range power supply
    ☆  Multiple language options
    ☆  30 logical configurable zones
    ☆  PAS and Acknowledge Function
    ☆  Dirty Detector Reporting
    ☆  Walk Test Function
    ☆  Graphical LCD Display
    ☆  Zone indication and manual intervention panel
    ☆  Net-workable
    ☆  Programmable from PC
    ☆  Built-in RS485 repeater output (Maximum 10 repeaters)
    ☆  Optional GMC graphic station
    ☆  Optional Panel Printer
    ☆  Advanced user-friendly programming software including ‘Fuzzy Logic’
    ☆  Optional protection of re-programming
    ☆  Approved by LPCB

Technical Specifications

    ☆ Standard: EN54 Part 2/4
    ☆ Main Input Voltage: 100-240VAC, 50/60Hz
    ☆ Input Current Rating: 0.5A
    ☆ System Operating Voltage: 24 VDC Nominal
    ☆ Loop Capacity: Loop 1: 235; Loop 2: 242
    ☆ Outputs (3):
               Fire Alarm Output: 500mA /24Vdc/NO-NC
               F.P.E. Output: 500mA /24Vdc/NO-NC
               Sounder Circuit Output: 500mA /24Vdc/NO-NC
    ☆ Dimension: (HWD) 580 x 420 x 202 mm
