Addressable input/ output Module AW-D319

(0 Reviews)
In stock
Estimate Shipping Time: 1 days
Sold By:
Inhouse product
Asenware
Price:
NGN79,450.00 /0.2
Quantity:
(1 available)
Total Price:
Share:
Sold By
Secureshop
(0 customer reviews)
Top Selling Products
Description Reviews

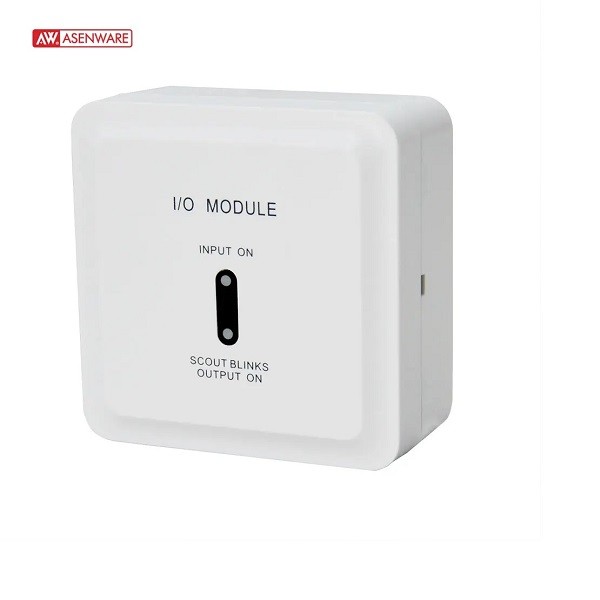

The AW-D319 Addressable Input-Output Module works with the AW-FP300 fire alarm control panel. Its main purpose is to control output for fire linkage equipment, such as smoke dampers, blow valves, and fire dampers. It also receives feedback signals from the fire linkage equipment, allowing for assessment of their normal operation.

Product Features

LPCB Addressable Fire Alarm System Input Output Module Feature:

1. Executive standard: EN54-18

2. Operation voltage: loop DC24V (polarity-insensitive);power DC24V(polarity-insensitive)
3. Quiescent current: loop current<0.8mA; power current<2mA
4. Action current: loop current<5mA; power current<15mA
5. Capacity of the output control contact: 1A@DC30V
6. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in
the output status; the input indicator will remain lit in the feedback status.
7. Operating environment: Temperature: -10ºC ~ 55ºC; RH: ≤95% (40 ºC±2ºC, without condensation)
8. External dimensions: 86×86×41(mm,With base)
9. Weight: about 148g(With base)
