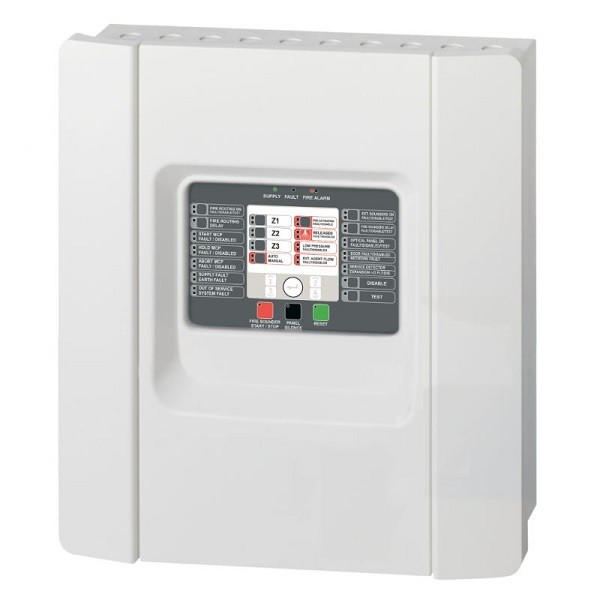

1X-X3-99 CONVENTIONAL EXTINGUISHING PANEL PL W/ UI - 3 Z BAS (ENG INT)

The  Aritech 1X-X3E-99 is a networkable, enhanced conventional fire alarm and extinguishing control panel. It is supplied in the local language with 3 fire zones that support up to 32 devices per zone. These zones may be configured for extinguishing in a single zone or double zone configuration in any combination of zones. In addition, the panel offers supervised outputs for first stage notification, second stage notification as well as optical warning indicators and actuator activation. Standard relay outputs are provided for EN54 compliance and system status notification, as well as multiple inputs for system control.

Aritech 1X fire control panels offer state-of-the-art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. They feature an attractive contemporary design that fits with any décor. The gently curved door front offers a distinctive flair. Operator controls are inset in a striking black Lexan.

With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.

Options

The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards, the panel outputs may be expanded with up to 16 additional outputs. The 1X-X3E supports class A (redundant ring) and B (standard bus) networking with up to 32 nodes including conventional and addressable panels and repeaters via an optional network interface. This allows full remote control and inputs to and from other nodes in the system, providing superior flexibility in system organization and planning.

Aritech 1X-X3E-99 1X Conventional Fire and Extinguishing Panel has the following features:

• Sounders configurable for pulsing or continuous operation
• Extinguishing agent flow confirmation
• Continuous or resettable 24 VDC auxiliary supply
• Auxiliary standard & supervised relay output support
• Intrinsically safe and EN54-13 zone support
