ASENWARE CONVENTIONAL MCP Manual Call Point AW-D135C

Sold By

Secureshop

(0 customer reviews)

Top Selling Products

Addressable strobe sounder base AW-D120

NGN40,250.00
ASENWARE CONV PANEL AW-CFP2166-2 2 ZONE PANEL

NGN158,550.00
ASENWARE CONV PANEL AW-CFP2166-4 4 ZONE PANEL

NGN188,510.00
15-30W water proof speaker AW-SP04

NGN61,250.00
20-30W water proof speaker AW-SP05

NGN87,500.00
3-6W Small ceiling speaker AW-SP01

NGN21,000.00

Description Reviews

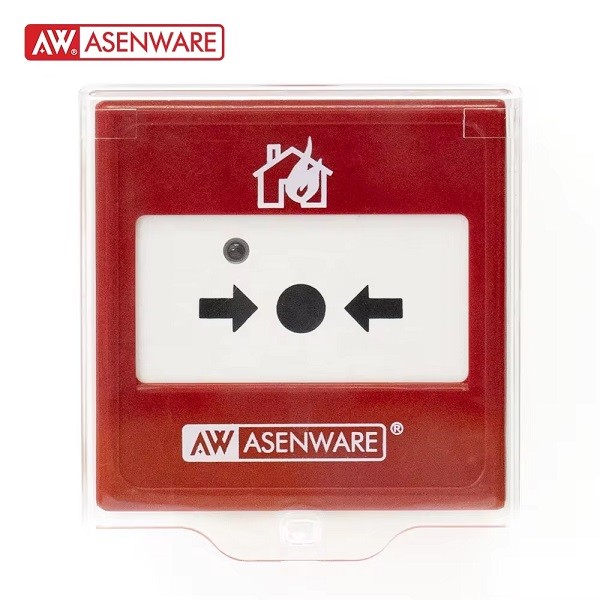

The AW-D135C Conventional manual call point is designed to be used with an intelligent two-wire control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the equipment status of the manual fire call points. When the manual fire call points are operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit.

This passage will introduce the features, installation, wiring, and use of AW-D135C conventional manual call point, to help you understand more about the conventional manual call point.

How To Install Conventional Manual Call Point

The AW-D135C conventional manual call point can be semi-recessed or mounted on the wall surface. When installing, this manual call point has to be installed in the order of base, middle cover, and top cover. Fix the base on the wall, then attach the middle cover to the base, and finally attach the top cover to the middle cover.

The size of the base is 87mm×7mm×33mm (L×W×H), the mounting hole diameter is φ5mm, and the fixed hole spacing is 36mm.

Download

There have been no reviews for this product yet.
